The SAIFERM-BIO-EMU emulsification system is a specialized equipment designed for the emulsification process of animal biological products. Equipped with a special high shear dispersion tank emulsifier and a three-stage pipeline emulsifier (optional brands such as IKA, FLUKO, etc.) for emulsification, and equipped with boiling oil tank, water phase tank, emulsification tank, and mixing tank according to the sequence of vaccine emulsification process. To meet the requirements for sterility, temperature, speed, and time in the emulsification process of veterinary vaccines, the valve pipeline connection and Sedzirui emulsification control system are used to achieve the emulsification effect and stability required by the emulsification process.
This system can meet the process requirements of white oil adjuvant emulsification, 201 adjuvant emulsification, and water adjuvant emulsification, and the equipment volume size is set according to the process requirements.
working principle
This system utilizes stainless steel pressure vessels, tank bodies, and pipeline valves to form an integrated closed system, which can control the sterility, temperature, and pressure of antigens and adjuvants in the system. Under the action of mechanical force (emulsifier or other stirring), the antigen liquid or particles (droplets) are dispersed and suspended in an immiscible oil adjuvant liquid (continuous or external phase) with the help of emulsifiers in a certain proportion to form a relatively stable dispersion system. After completion, it is sent to the filling system.
Automatic Control System
- The SAIFERM-BIO-EMU emulsion system has an integrated modular design for its automatic control program, using Siemens PLC as the main controller, which can be customized according to customer needs; After process design, the system can automatically achieve the following functions through programming:
Fully automated control, selecting formula management for formula determination, and automatically executing after selection. - The sterilization of the system tank and pipeline are both automatically controlled, with one click operation, and the temperature and sterilization time can be set.
- Login with three-level permission control, and the entire emulsification process data will be displayed, recorded, saved, and traced in real time after login. It can be connected to an external printer.
- The system has a system operation fault alarm.
- The system control interface can be customized.
- The system is set to automatic CIP cleaning and seamlessly integrates with our CIP cleaning station system.
- The system reserves redundancy, which can meet the needs of subsequent upgrades and integration with the overall control.
Product Features

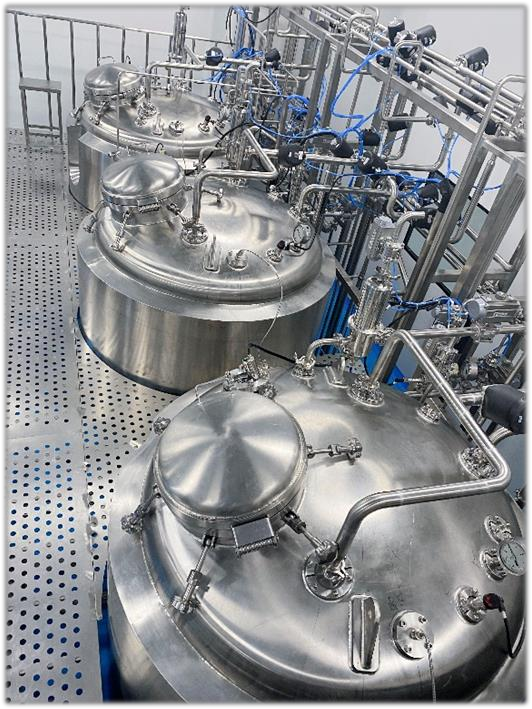

- The SAIFERM-BIO-EMU emulsification system is composed of a boiling oil tank, a water phase tank, an emulsification tank, a mixing tank, and a filling buffer tank (optional). The volume size, container horizontal or vertical structure, and combination form are designed and freely combined according to the actual working conditions of the customer, and are installed inside the tank
Or a pipeline emulsifier (which can be provided or designated by Party A), equipped with corresponding pipelines and intelligent control systems, capable of fully autonomous operation and unmanned operation. - Equipped with flow monitoring, the dosage of white oil and antigen in the water phase can be measured by mixing them in proportion in the emulsifier, and weighing systems are installed in each tank.
- Set up a sterile sampling system for steam sterilization, which can take sterile samples during the process according to requirements.
- Set up a temperature control system to maintain and stabilize the temperature requirements during the emulsification process.
- Formula management is automatically performed based on the selected stored formulas.
- The system is equipped with CIP self-cleaning capability and integrated into the control system. An external CIP cleaning host is required.
